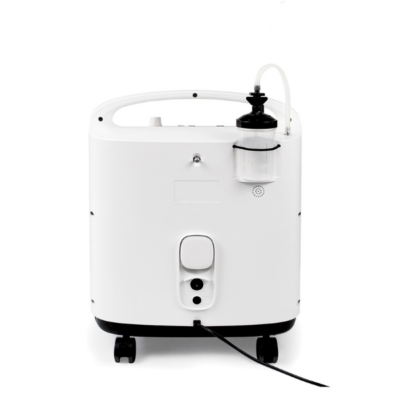

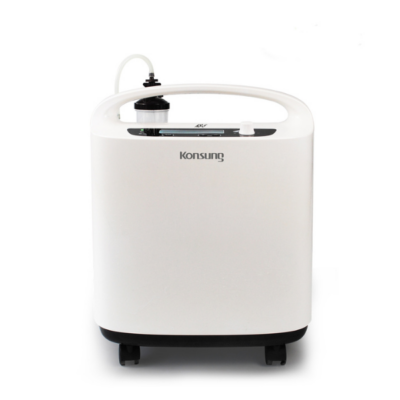

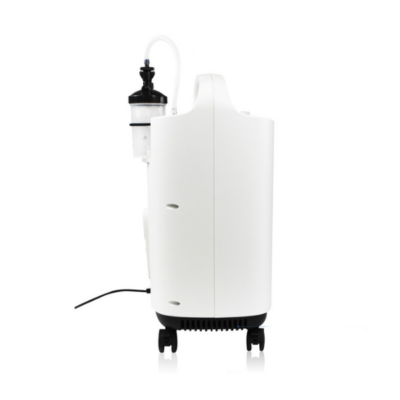

Oxygen Concentrator KSW-5

SKU: KSW-5

SHORT DESCRIPTION:

Our new and improved 5l oxygen concentrator is medical-graded with a flow range of 0 – 5 liters per minute at a continuous flow allowing for 24-hour usage.

This oxygen concentrator has a medical level oxygen purity of 93% to 96% at all flow rate levels and therefore, is suitable for homecare, clinic and hospital use to meet a wide range of patients’ needs.

Standard Package Includes:

  • KSW-5 Concentrator
  • 1 x Spare air filter
  • 1 x Nasal cannula (1.6 meter)
  • 1 x Nasal cannula (6 meter)
  • 1 x Humidifier bottle
  • 1 x Nebulizer kit
  • User Manual

Nappi Code: 1103783-001

LONG DESCRIPTION

Our NEW and improved 5l Oxygen Concentrator KSW-5 is a self-contained, electrically powered medical device designed to concentrate oxygen from ambient air, which can then be used with a variety of devices to deliver oxygen to patients. The 5l oxygen concentrator KSW uses a process called “pressure swing adsorption” (PSA) to take in air from the environment, and remove the nitrogen, resulting in 93.0% ± 3% of concentrated oxygen for use by patients who need supplemental oxygen therapy.

  • Our 5l Oxygen Concentrator KSW-5 uses American PSA technology to offer natural oxygen with a reliable and durable oil-free compressor. Medical level oxygen purity is guaranteed by the molecular sieve which is imported from France.
  • Oxygen concentrators can play a significant role in improving the quality of care and increasing access to life-saving oxygen, even in lower-resource settings. If used correctly and maintained according to the manufacturer’s user guide, our concentrator also has the advantage of being more reliable and lower cost compared to piped oxygen systems and oxygen cylinders. As a source of oxygen for delivering supplemental oxygen to treat hypoxia, oxygen concentrators have the advantage of being able to process ambient air into the appropriate amount of oxygen that patients require for their clinical condition.

Specifications:

  • Product description: Medical oxygen concentrator
  • Model Number: KSW-5
  • Instrument classification: Class II
  • Digital LCD Screen
  • Nebulizing port
  • Digital Flowmeter
  • Purity: 96%±3% at 1 – 5L
  • Power supply: 450 VA
  • Noise: <40dBa
  • Output Pressure: 40-80 kPa
  • Size: 51 x 26 x 41cm
  • Weight: 18kg
  • Flow Rate: 0-5lpm

Alarms:

  • Power off alarm
  • High- & Low-Pressure alarm
  • Temperature alarm
  • Error code indicator
  • Oxygen purity alarm
  • Nebulizer alarm
