PRODUCT DESCRIPTION

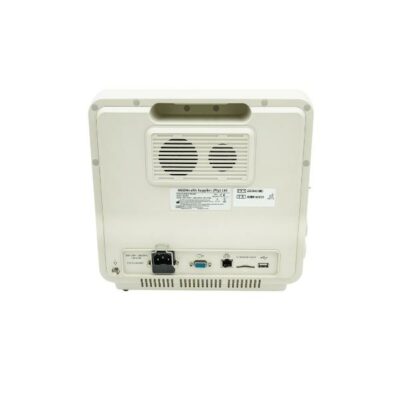

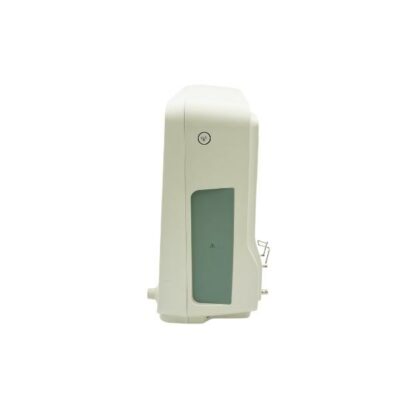

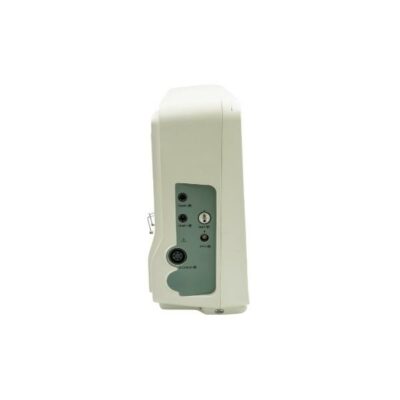

Bedside Monitor ZD120E

The Bedside Monitor stores data in the trend and event database. You can view measurement trend graphs and alarming events to help you identify changes in the patient’s physiological condition. The ZD120E monitor can be used during transport situations and for connectivity to clinical networks.

Product features:

• Pacemaker detection and rejection capability – compliance with AAMI EC 13
• Defibrillator protection – Tested with 5kV
• Drug Calculation
• Quick mode operation
• High-Performance Lithium Battery
• Multi-parameter patient monitor

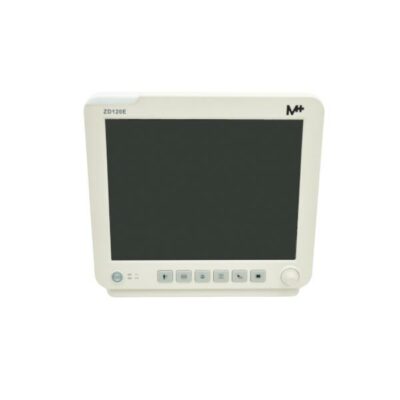

• 31 cm LED-backlit LCD – non-touch screen
• Slim body with a hidden handle, easy to move
• Visual and audio alarm with triple colored alarm light
• Lithium battery inside
• No-fan design matches the requirements of the multi-patient ward
• Able to save data when power supply fails
• It can be used to monitor and record multiple physiological parameters of adults, children, and newborns
• A rechargeable internal battery that can run the monitor for at least 60 minutes.
• The monitor can be used both during transport and at the bedside.
• Modern slim design with 120 mm width.
• It can write seven waveforms simultaneously with the optional 112 mm detachable printer
• Menu control with navigation knob.

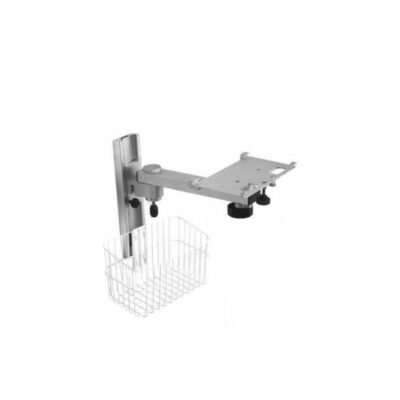

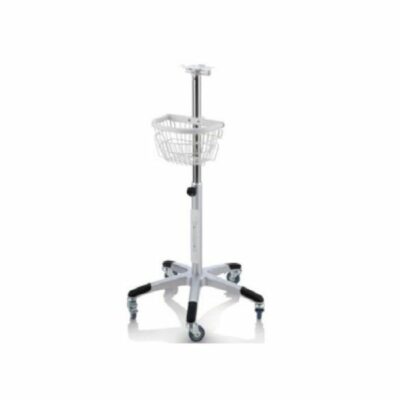

• Can be wall-mounted or positioned on a mobile stand.
• Suitable for Neonatal, pediatric, and adult use

In addition, the ZD120E Bedside Monitor offers the following:

• Pacemaker detection and rejection capability which complies with AAMI EC 13 regulations.
• Defibrillator protection – Tested with 5kVoltage.
• The Drug Calculation window allows you to calculate drug concentrations, infusion rate, titration rate, and dosage calculations.

Available configurations:

• ECG (Electrocardiogram)
• SpO₂ (Oxygen Saturation of Arterial Blood)
• 2-ch Temperature
• Respiratory Rate
• NIBP (Non-Invasive Bloor Pressure)

Optional configurations:

• IBP (Invasive (intra-arterial) blood pressure)
• ETCO₂ (End-tidal carbon dioxide)
• Thermal Printer

Documentation:

• Zondan - Declaration of conformity-patient monitor
• Zondan - ISO13485 Certificate 2021
• Zondan - EC Certificate
• ZONDAN - ZD120E_SPECIFICATION SHEET
• ZONDAN - ZD120E_USER MANUAL
